Featured product

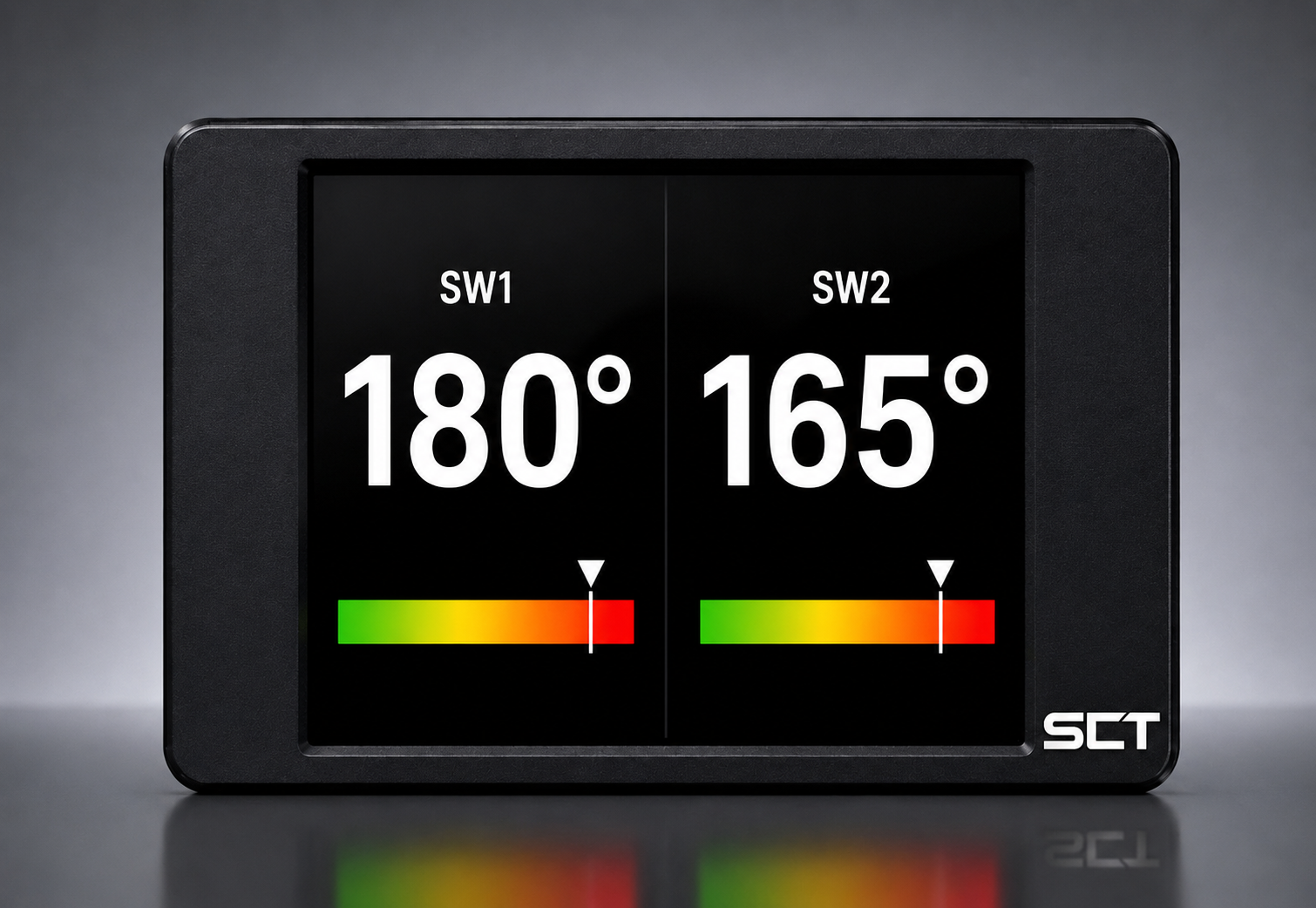

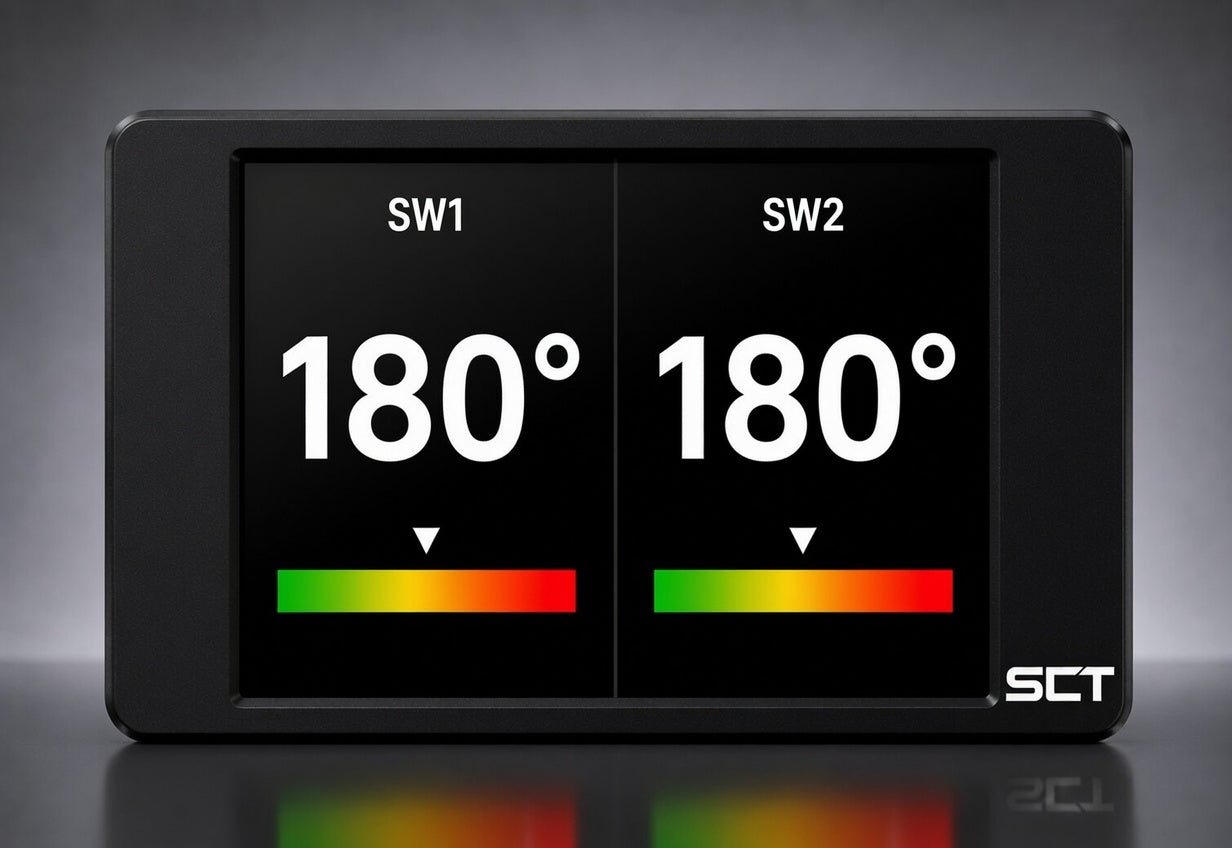

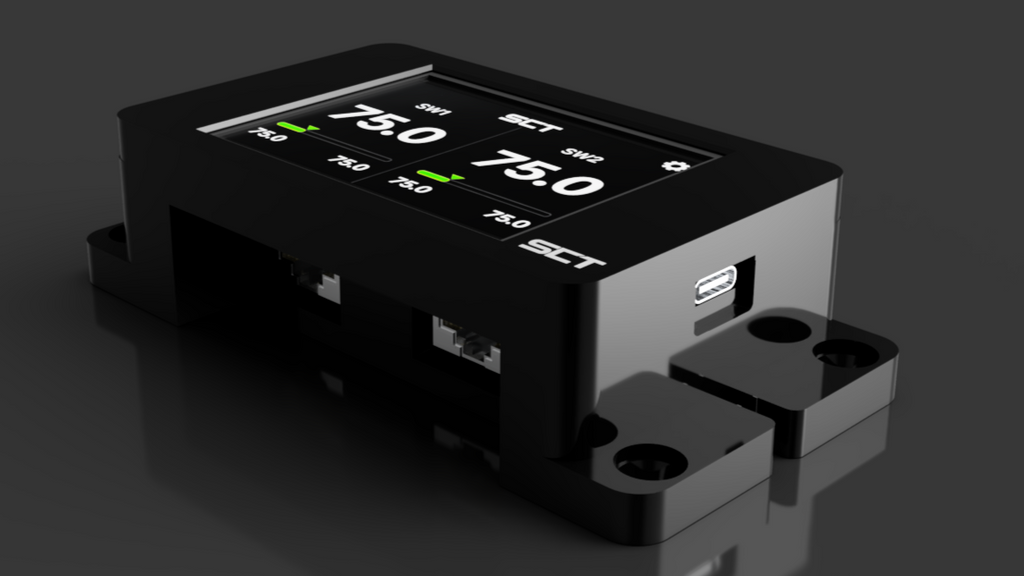

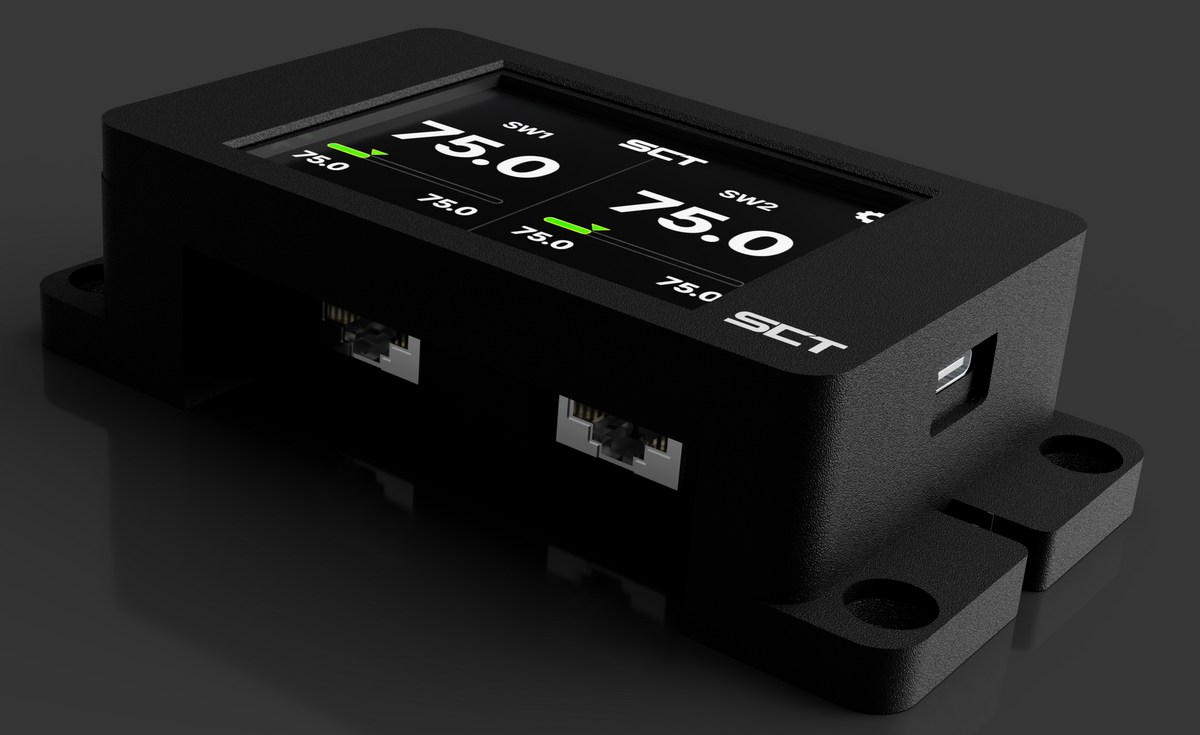

Subwoofer Coil Temperature Sensor
All in one Subwoofer Coil Temp Monitoring device

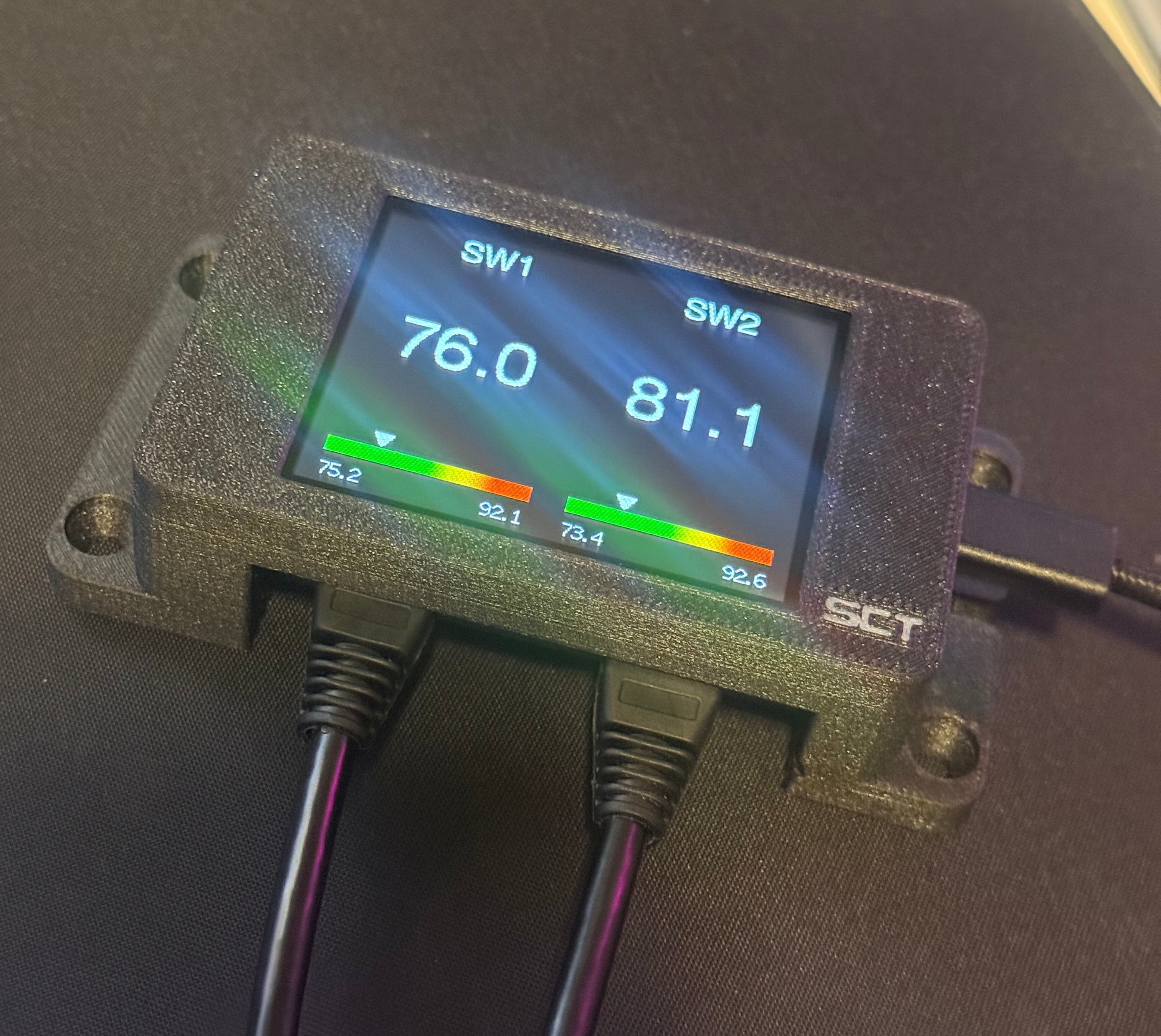

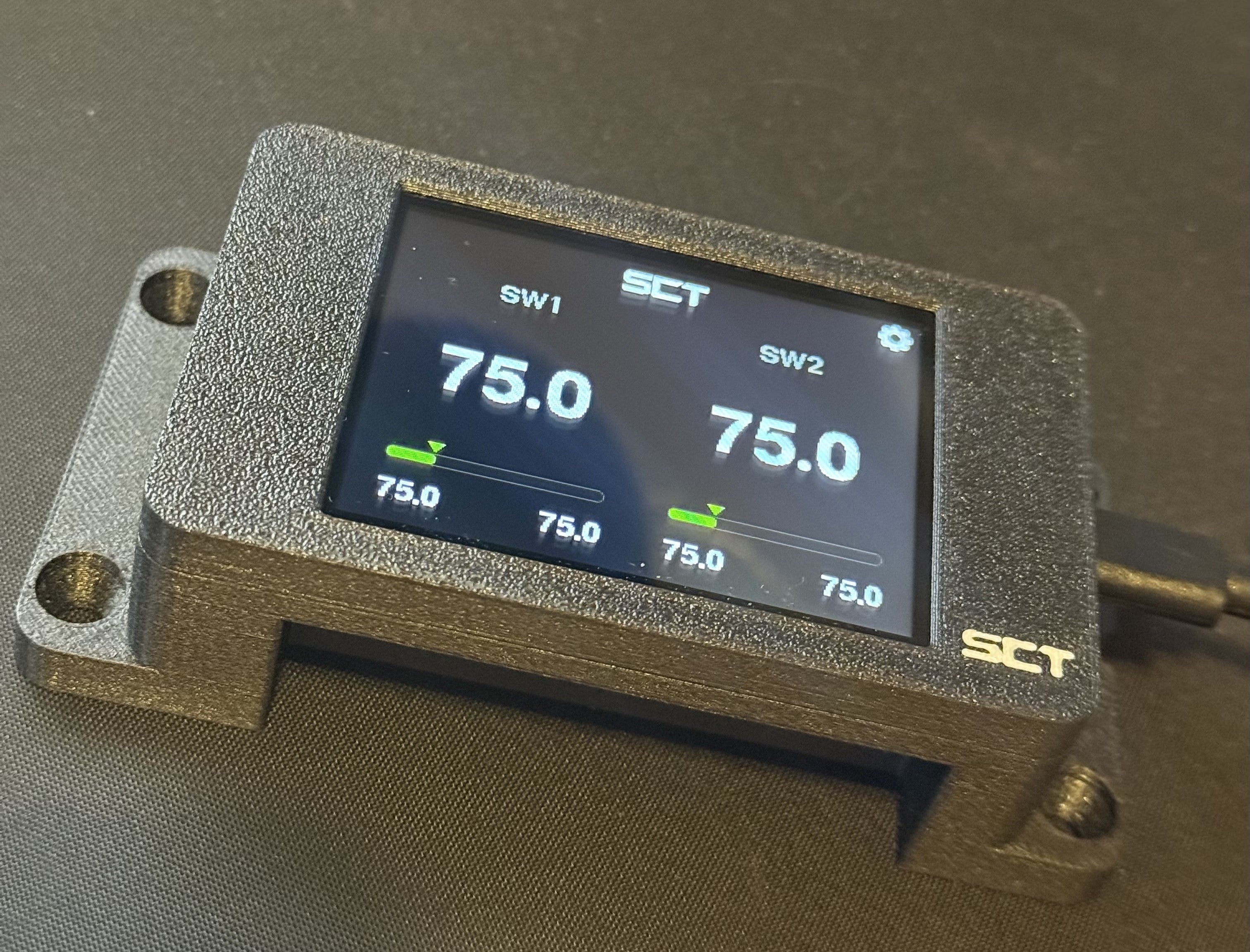

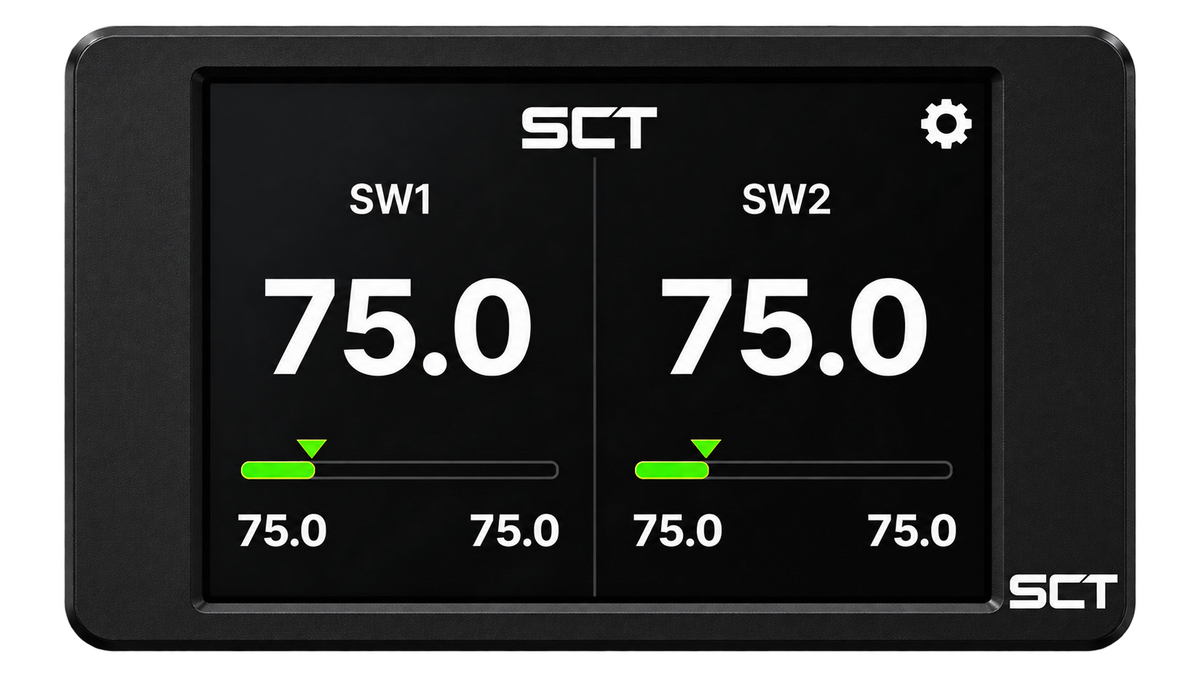

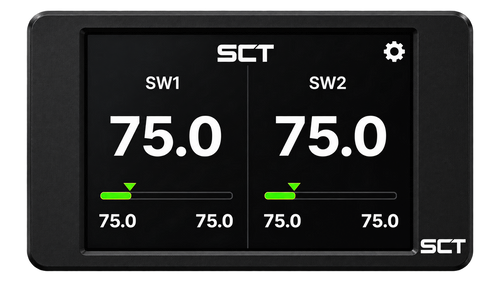

This product will give you real time read outs of voice coil temperature to 2.8" screen.

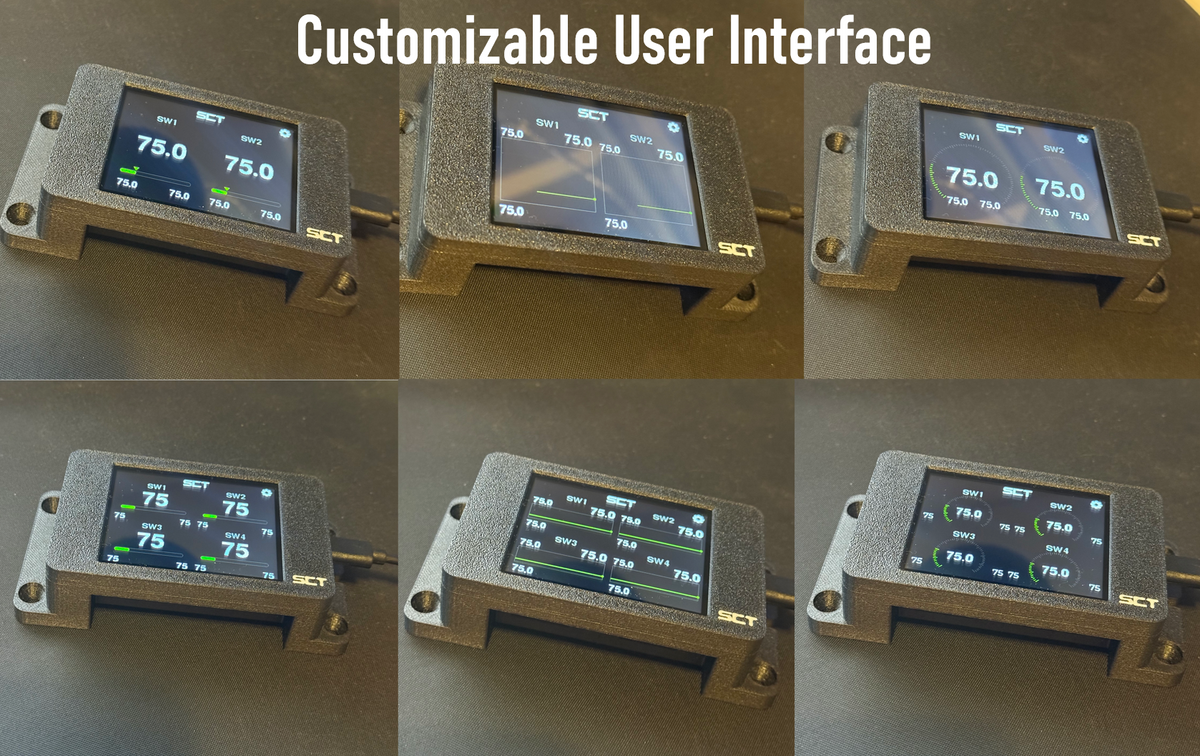

Easily visualize temps at a glance, with custom visual color cues, stored min and max values, along with linear gauge

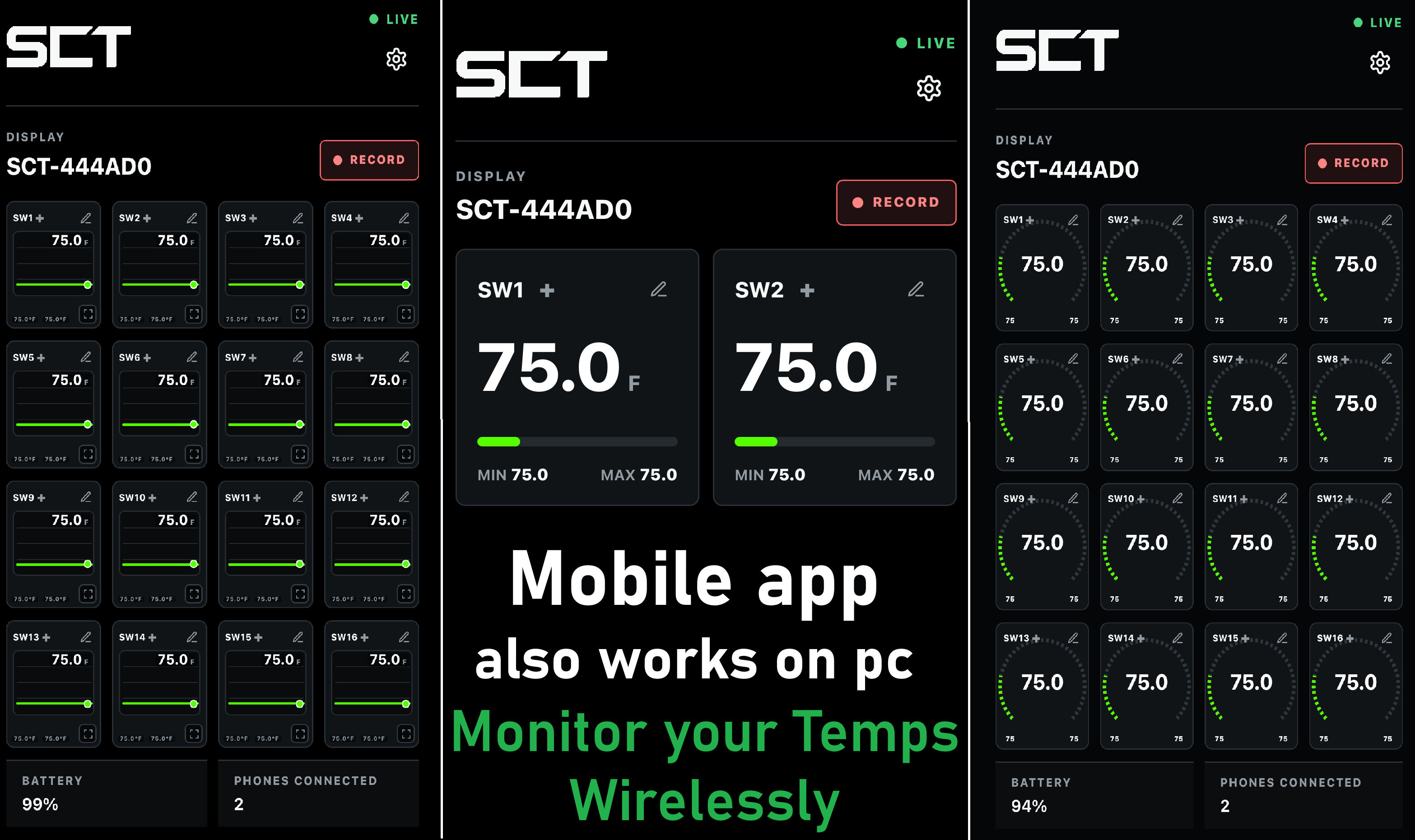

Monitor your temps wirelessly with mobile app
Wireless OTA Software/Firmware Updates
Each unit made to order build time is 5-7 business days

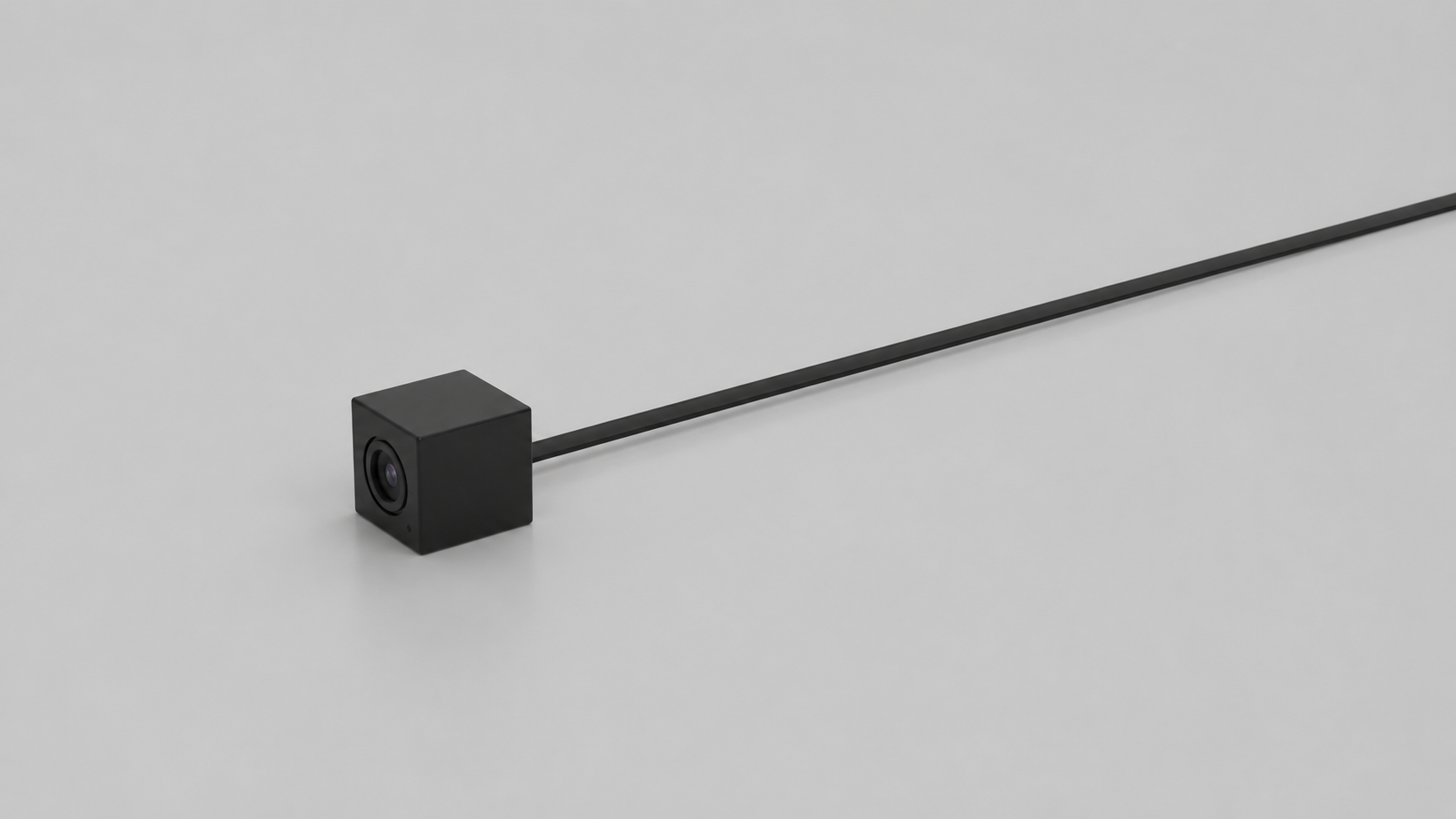

Sensor Information

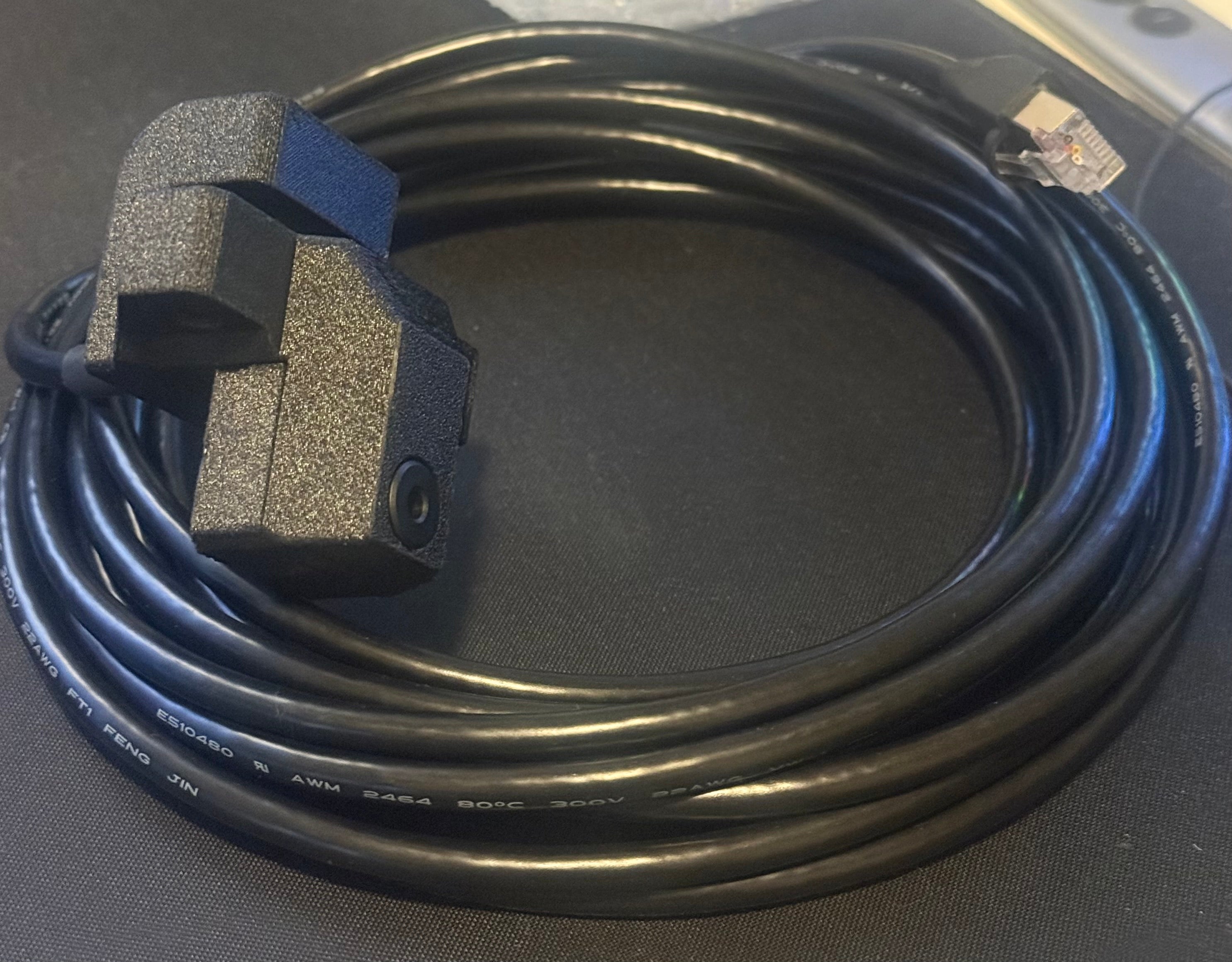

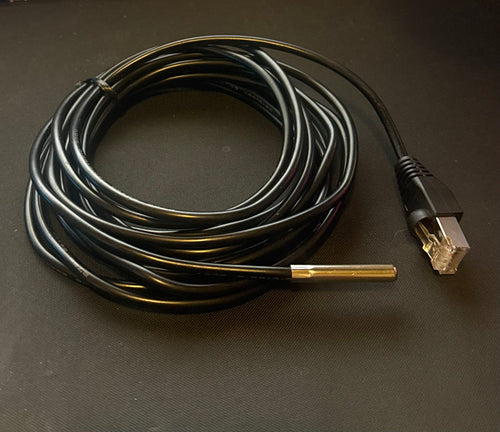

Simple Design one cable to temp sensor, and USB C for power. Includes 1 Sensor w/15ft cable, also supports our Amp Temp Sensor. Connect up to 2 sensors with no hub.
Refresh rate of 20 times per second "genuine High Temp Melexis sensor" 35° FOV lens for accurate measurements +/- 0.2°F

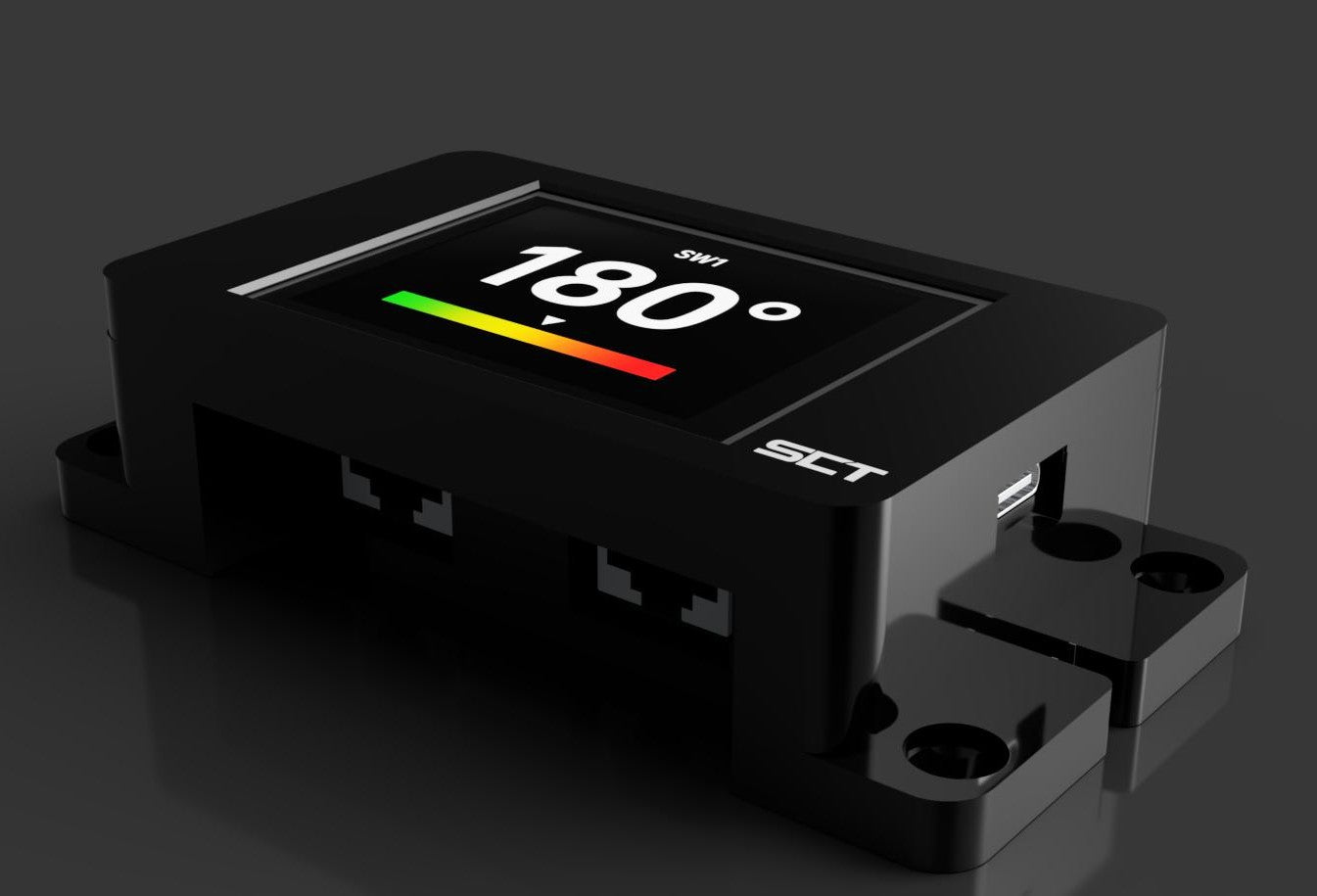

Bracket info

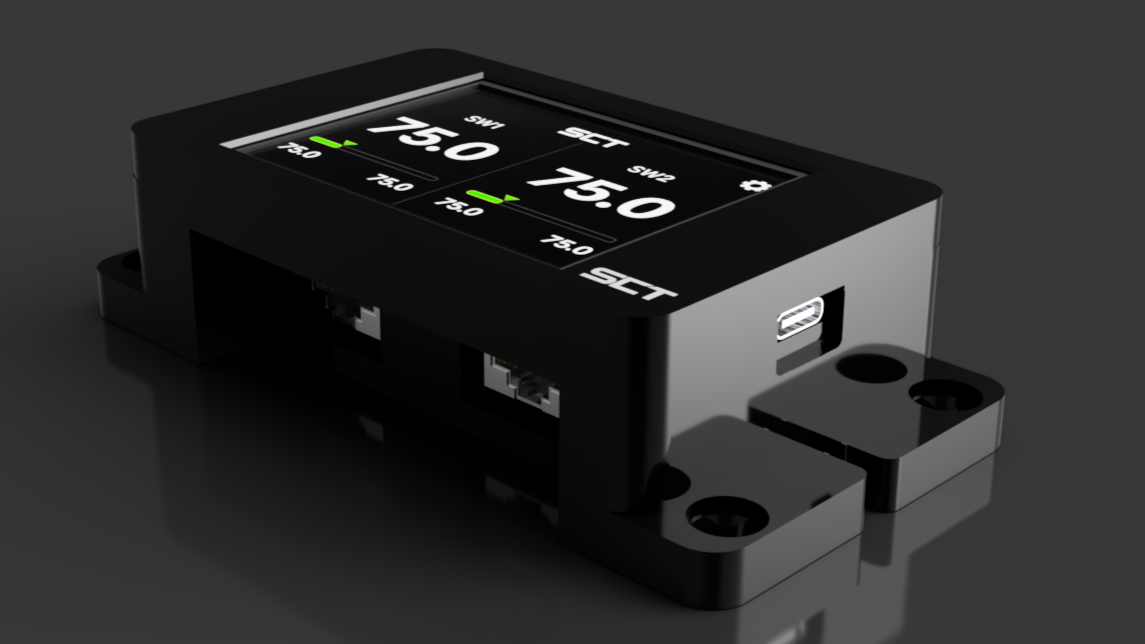

Includes standard mounting bracket, bracket is made from PAHT-CF, so warping under heat is not a worry easily withstanding Coils temps of 400°F+
Featured product

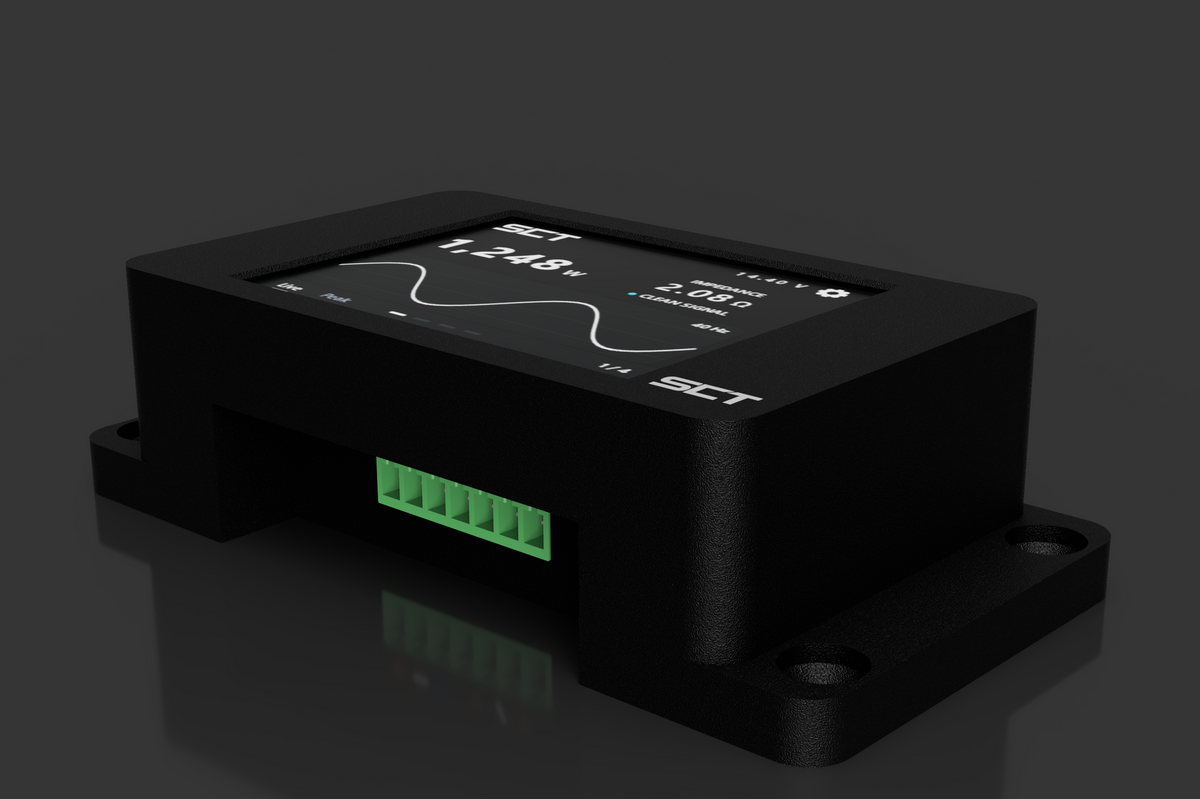

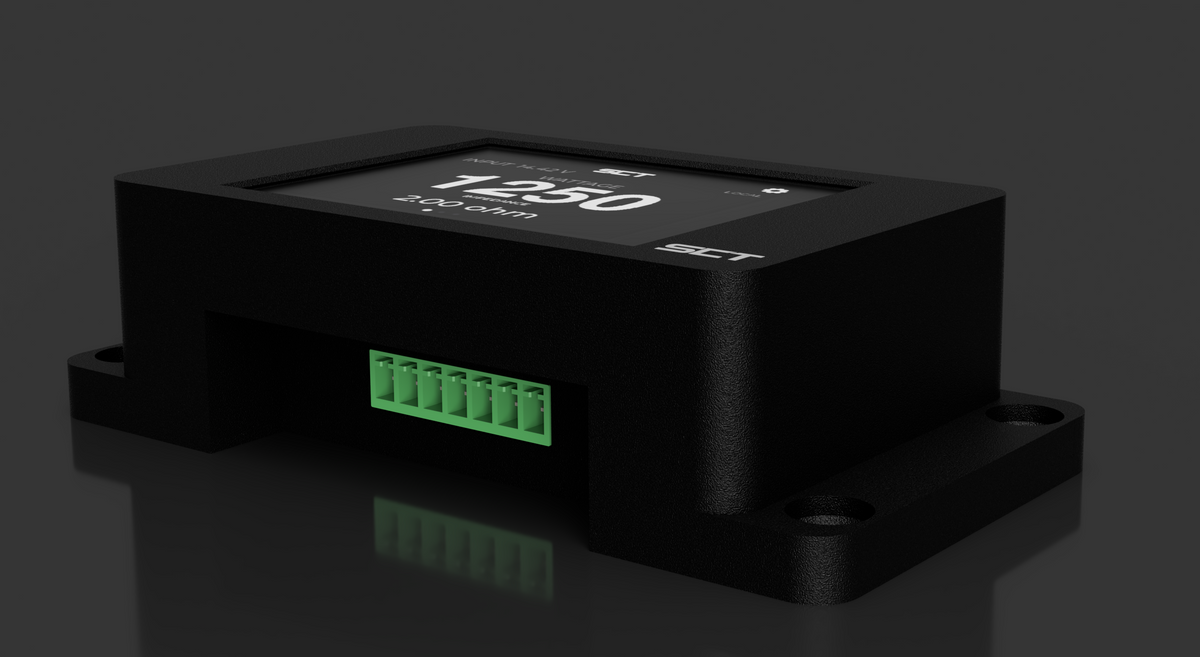

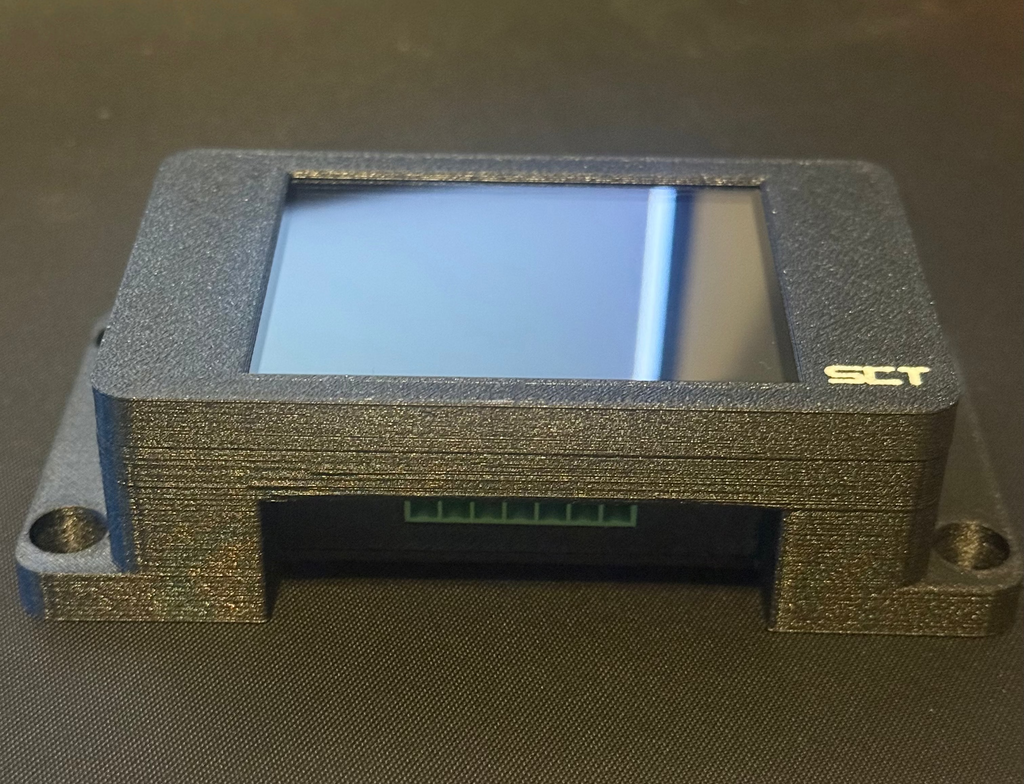

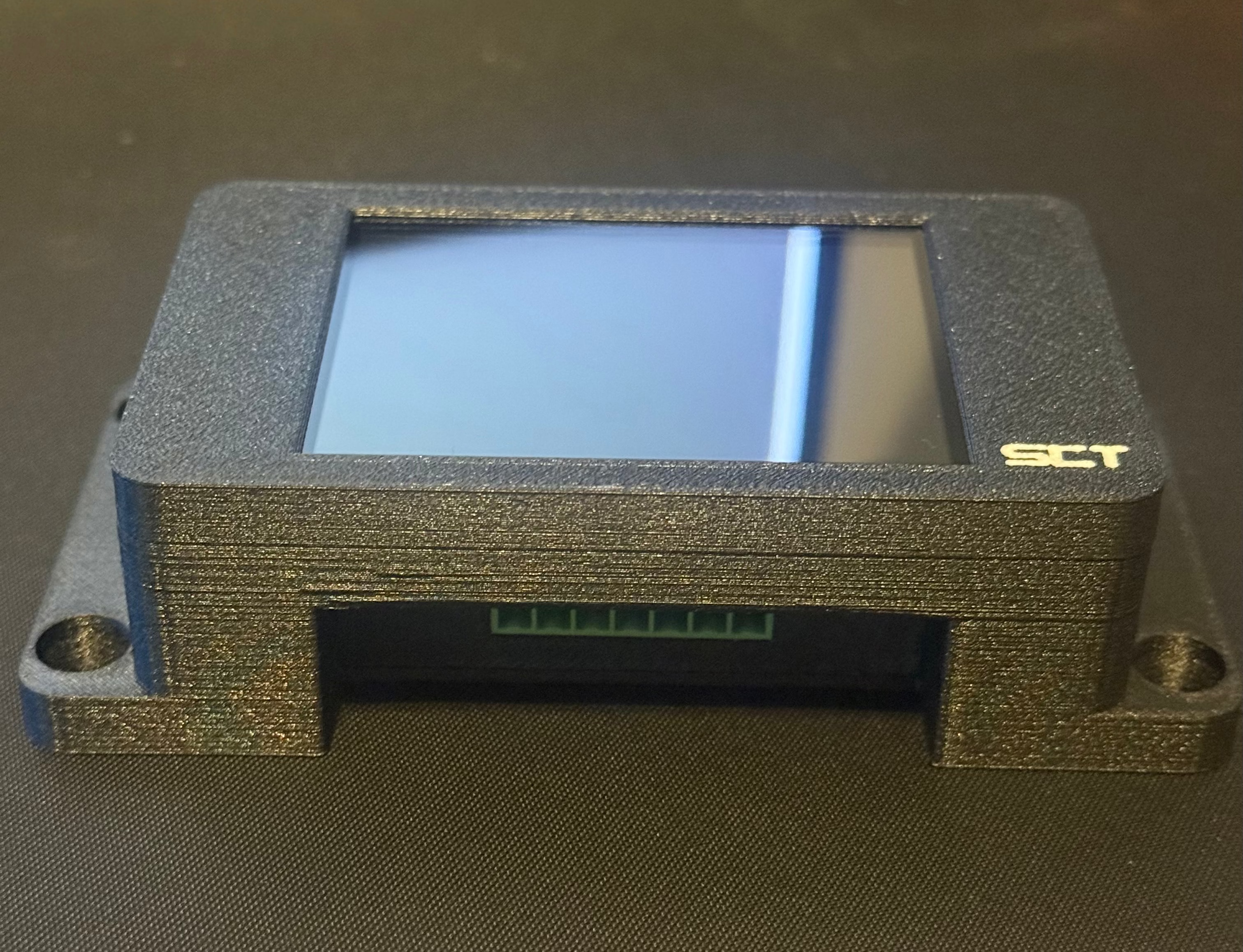

Measure Amplifiers Wattage, Impedance, Sinewave, & Battery Voltage in real time
Watts, Ohms, & Volts in real time - Can Measure 35K+ watts
Read Battery Voltage
Visualize Amps Sinewave see Clipping 1,000 samples per/s
Custom PCB made with the highest quality components on the market for Accurate, Reliable, & Huge Wattage readings
Wireless Connectivity/Monitoring via Phone App
Device Information/Specs
AC Voltmeter: 0 - 200 V Rms
AC Amperage: 0 - 200 A Rms
Max Wattage: 30,000+ Watts
Frequency range: 15 - 100 Hz
Display: 2.8" touchscreen
Connectivity: Wireless phone link & OTA updates
Material: PETG-Carbon Fiber
Analog Converter: 24 bit sine wave readings
Clamp: TA22 -400 "200a"
Device is made using the highest quality parts available on market and is quite overkill in every way. Purpose built from ground up for relaibility and accuracy, PCB Designed in house by myself
All your power readings in a single Package
This is a single device that can replace 3 devices, and has the circuitry for each 3 devices "Wattmeter, Voltmeter, Sinewave analyzer" built directly into PCB, purpose built for extreme conditions and harsh environments
Pickup currently not available
Featured product

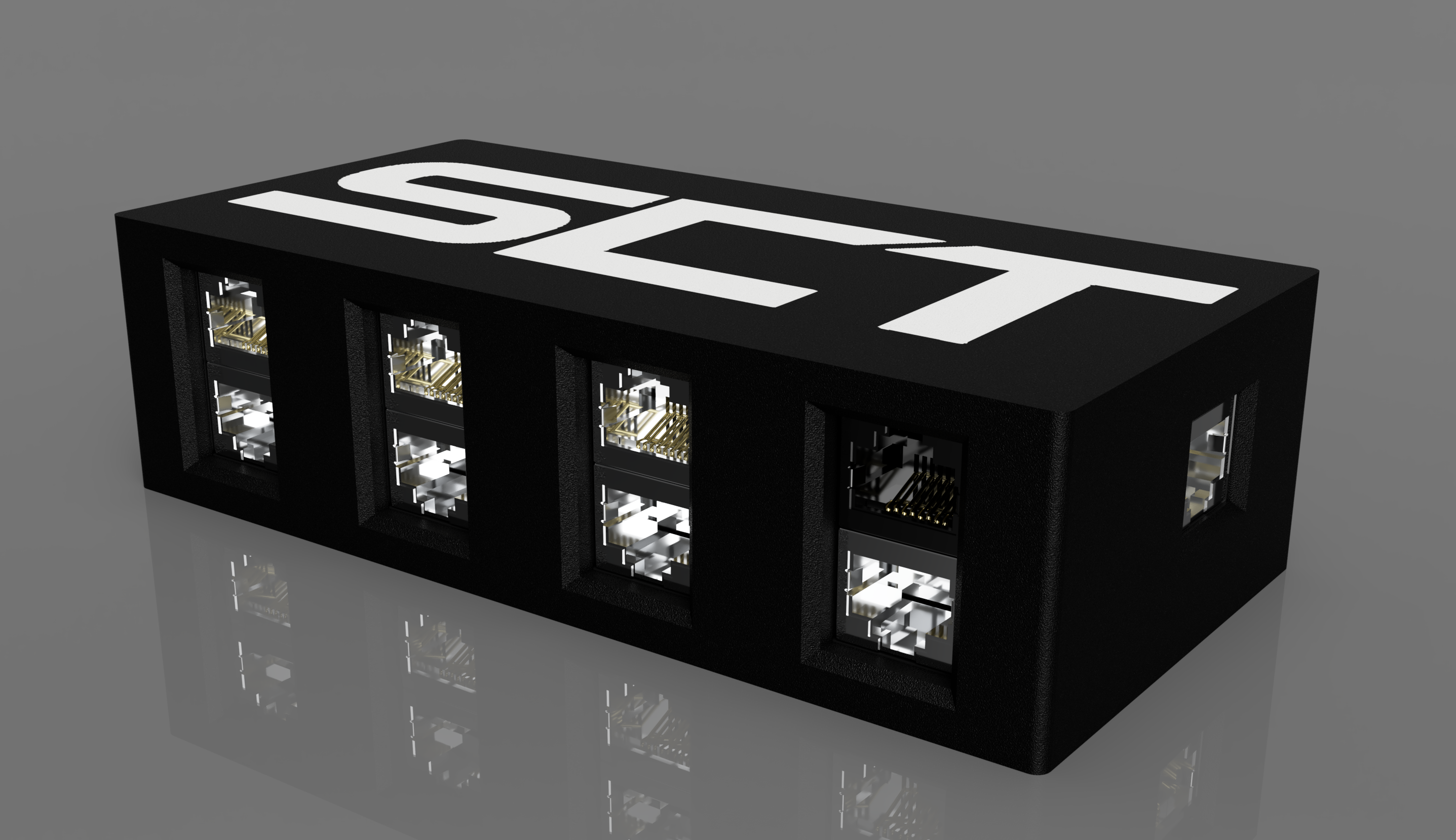

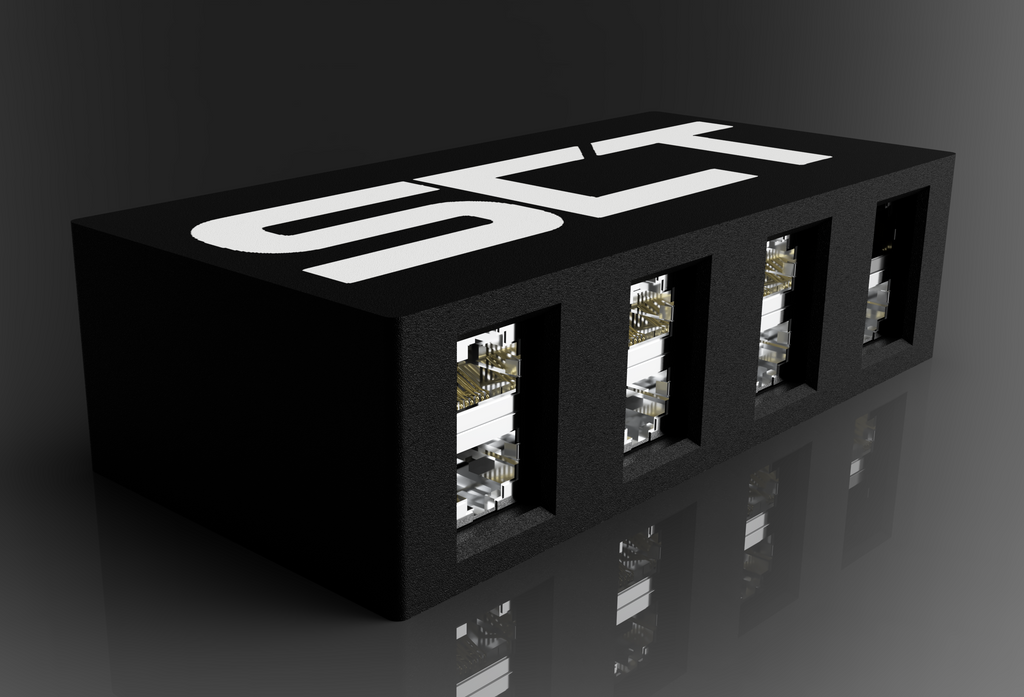

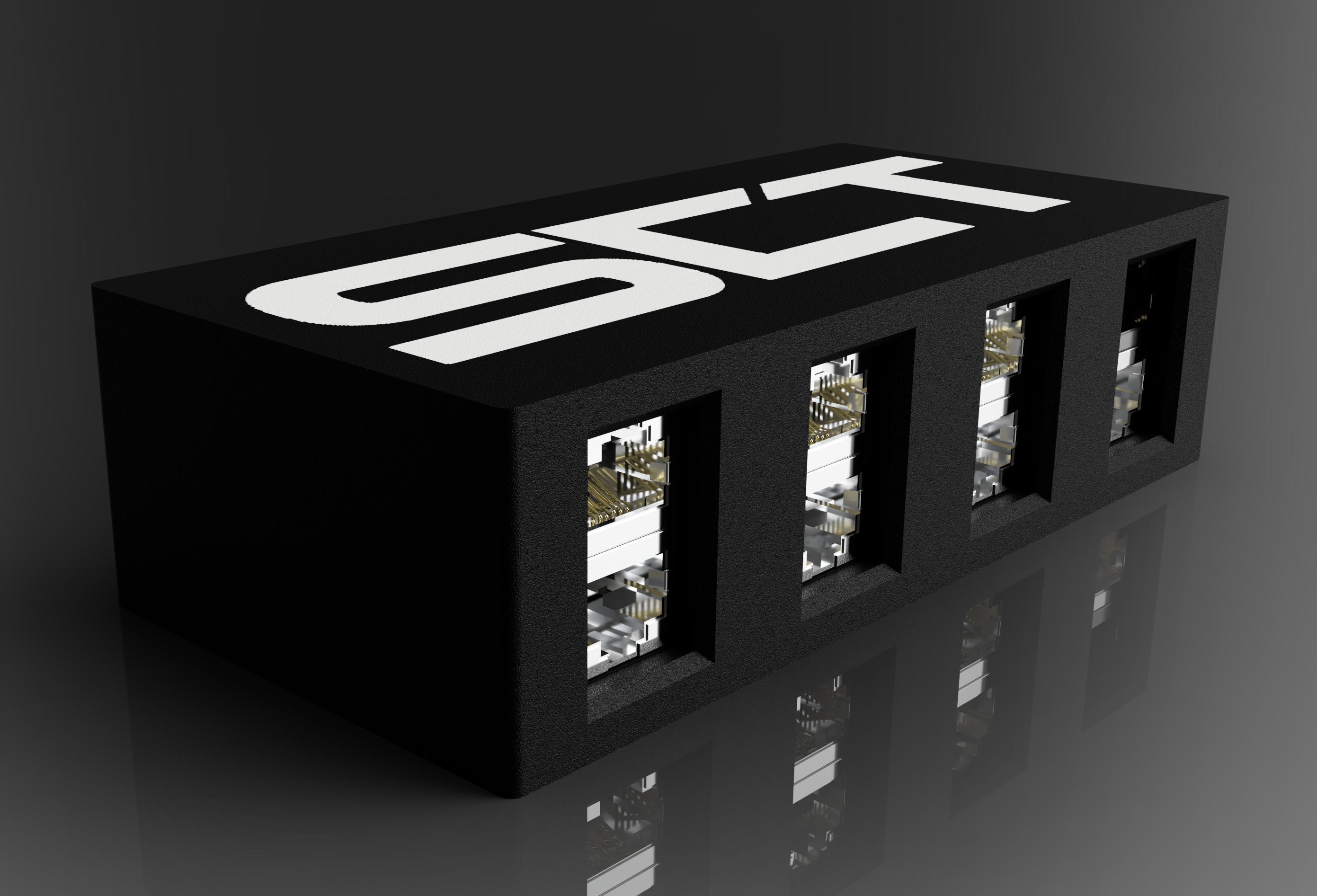

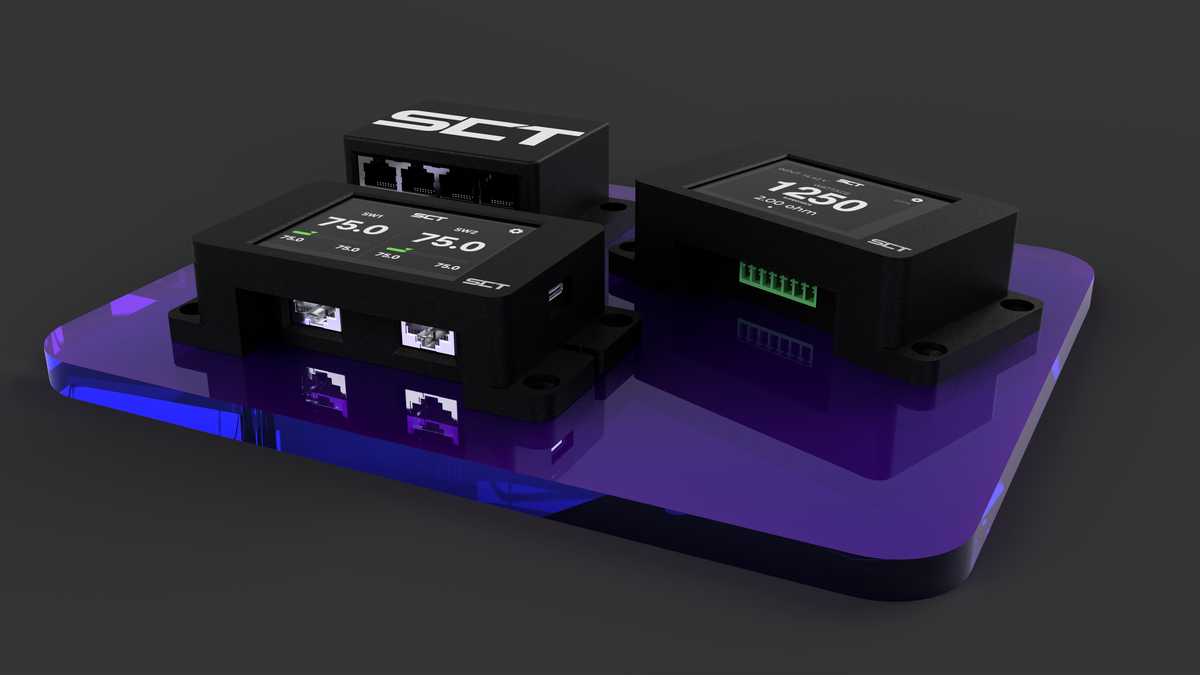

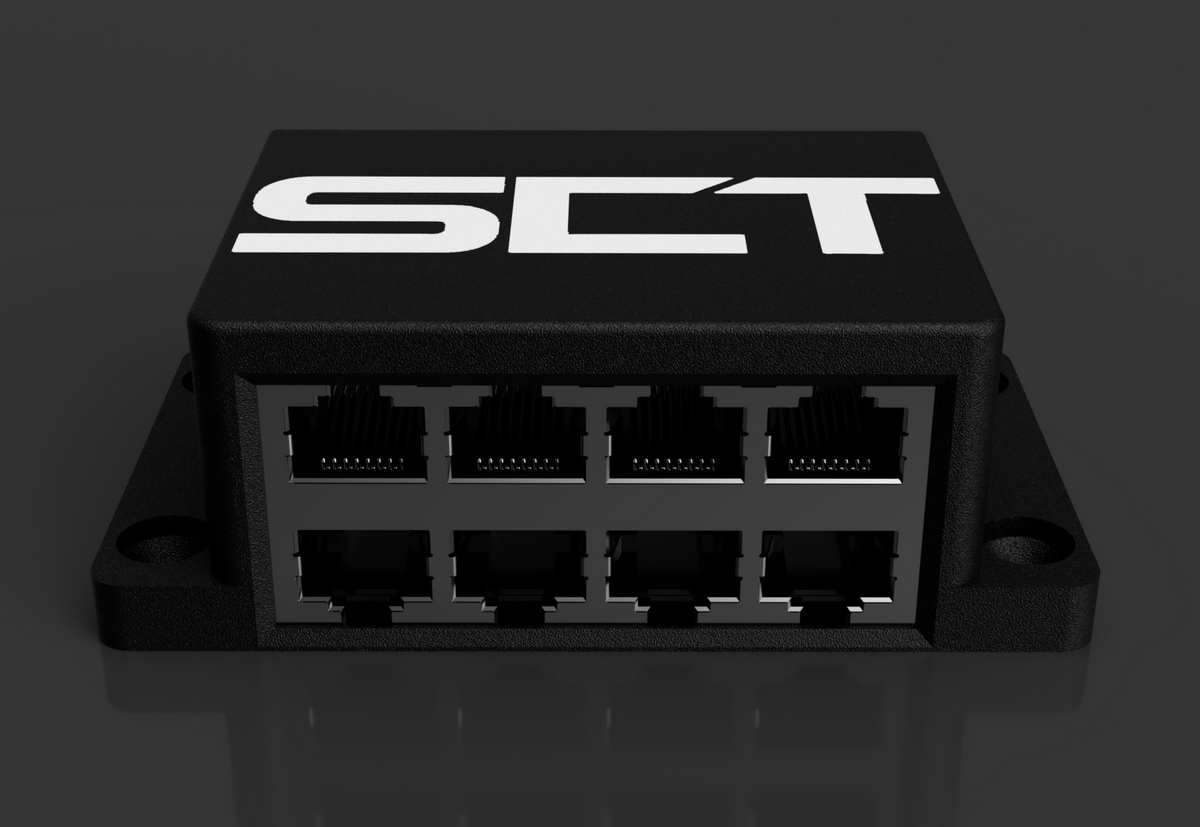

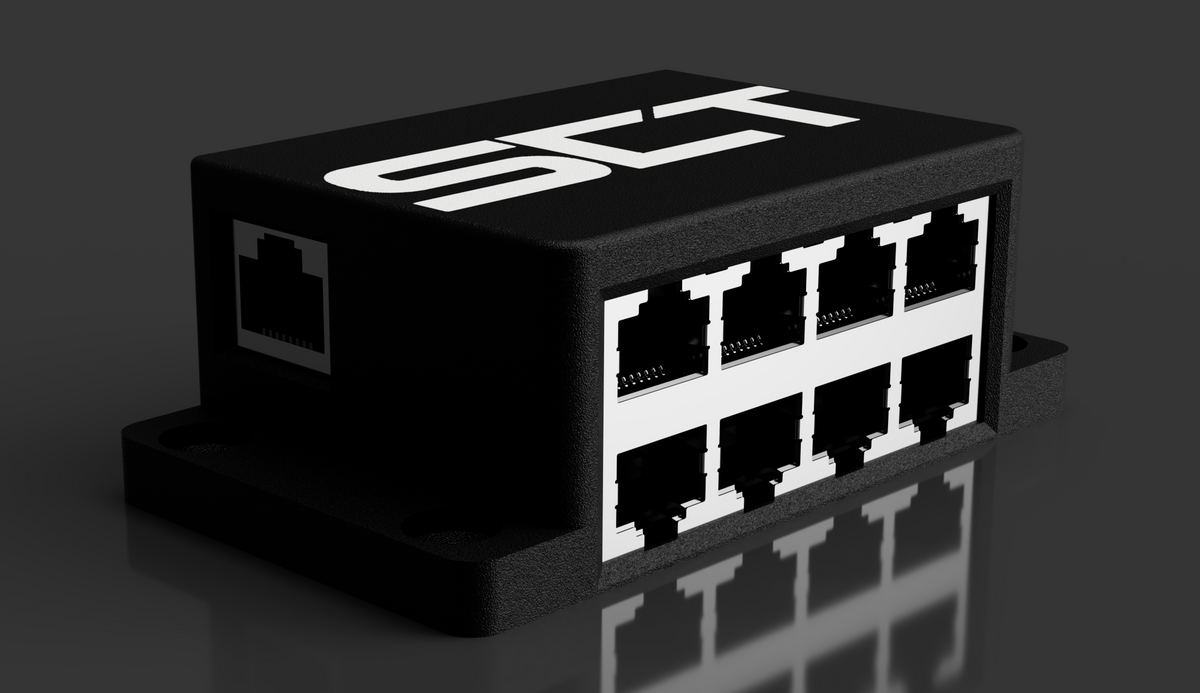

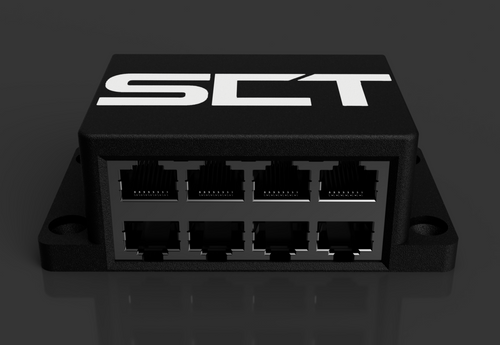

Connect 8 additional sensors to 1 device with SCT Hub with one cable or wireless the choice is yours
Need 16 Infrared readings? With the 2 ports on main device you can connect a hub to each
Works with our Subwoofer Temp Sensors as well as our Amp Temp Sensors simultaneously
Automatically Scaled UI/interface
Automatically Scaled UI/interface based on number of sensors plugged in
Grid Layout allows all temps to be displayed on a singular page 1x3, 2x2, 2x3, 4x2, 4x3, 4x4
Designed for easy clean Installs
One cable from hub to screen no messy wire job, power is provided through that same single cable
Custom cable made to length
Hub is designed for people who need more than 2 readings and have loads of equipment to monitor
This is not a breakout box or a splitter. It's functions as a completely second device with custom hardware and software working together to make this possible.
Pickup currently not available
Featured product

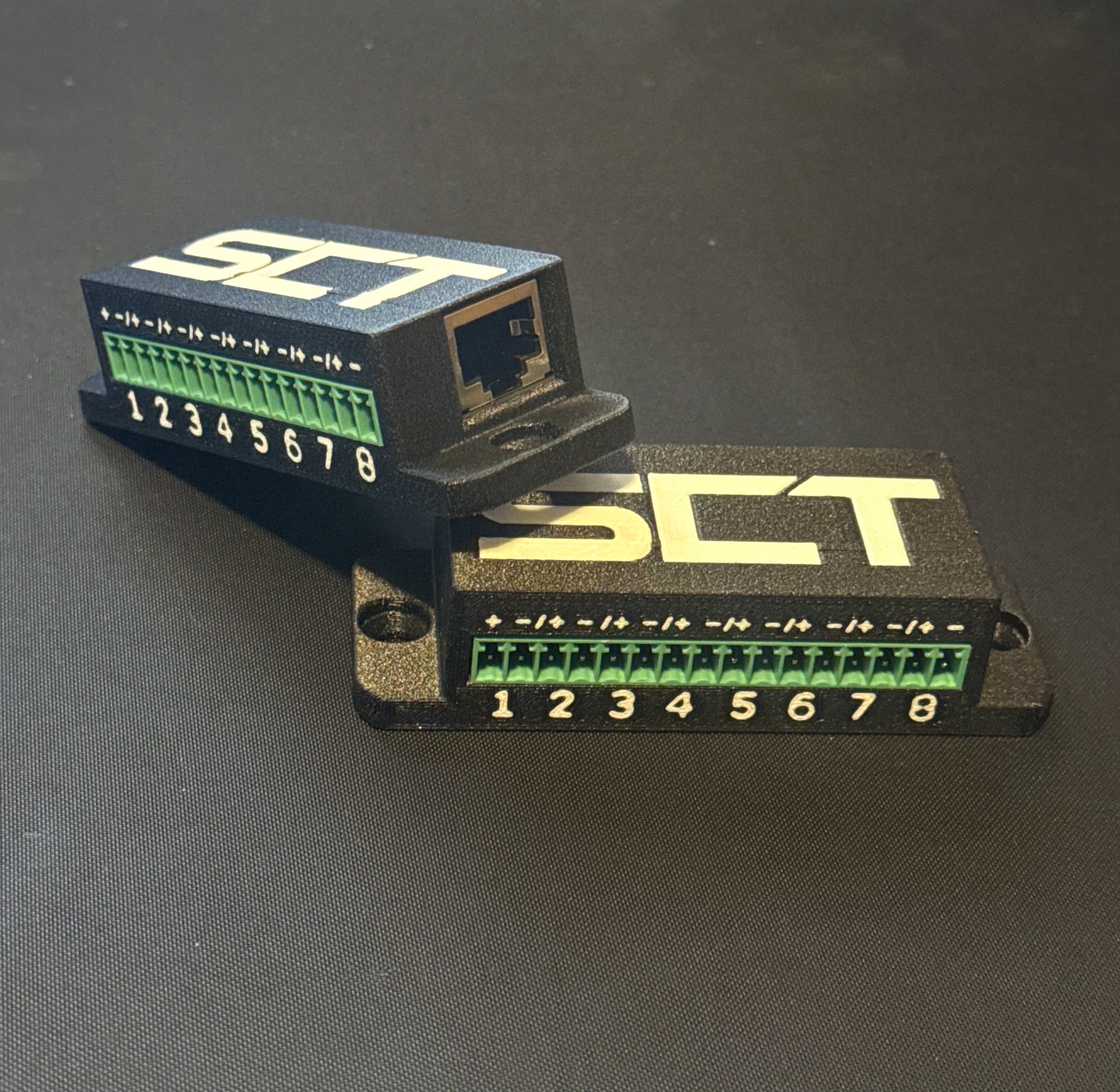

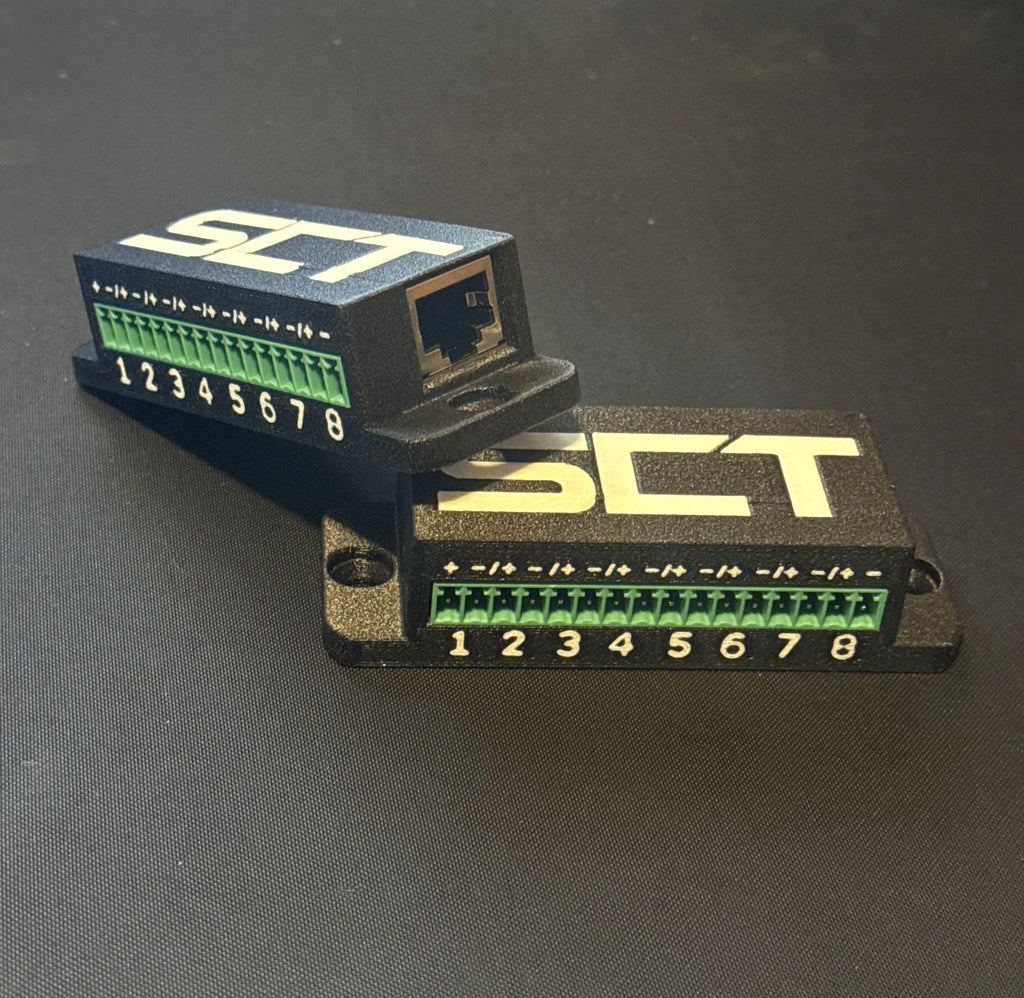

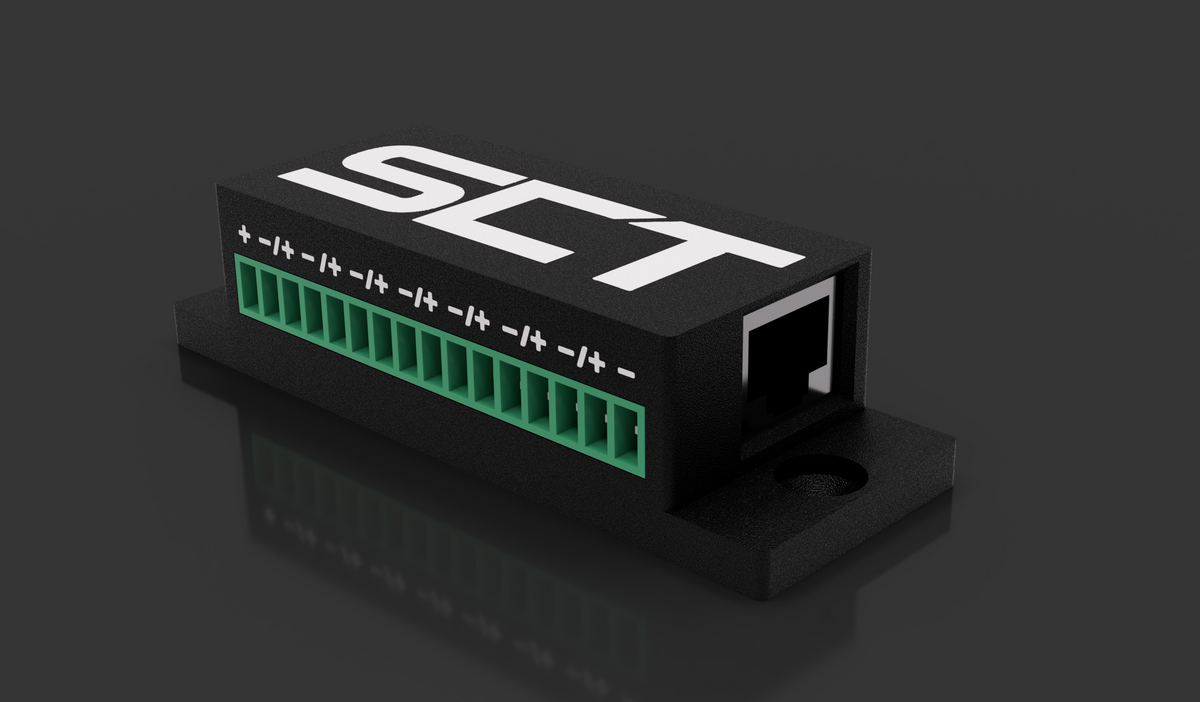

8 Channel Voltage Monitor
Monitor 8 Voltages at same time up to 36v ±0.005v Accuracy
Plugs directly into device or hub for seamless integration
Every unit is contains an EPROM calibrated per unit to achieve ±0.005v of accuracy
Record your voltage wirelessly through app
Monitor your entire systems voltage with high accuracy
Record min and max voltage plus in app data logs
8x2 3.81mm terminal block plugs for easy connection
Device Information/Specs
0-36v
±0.005 Accuracy
Dual 16 Bit ADC
300 Samples Per/s adjustable down to 20
